BDS 6 Inch Lift Kit | FOX 2.0 IFP Strut | Ford F150 (2015-2020) 4WD | 5 Inch Rear Block Kit

Configured with a 5 Inch Rear Block Kit, this option is suited for a tail-low to level stance correction, using high-strength fabricated lift blocks and longer u-bolts to achieve the increased rear lift height.

Overview

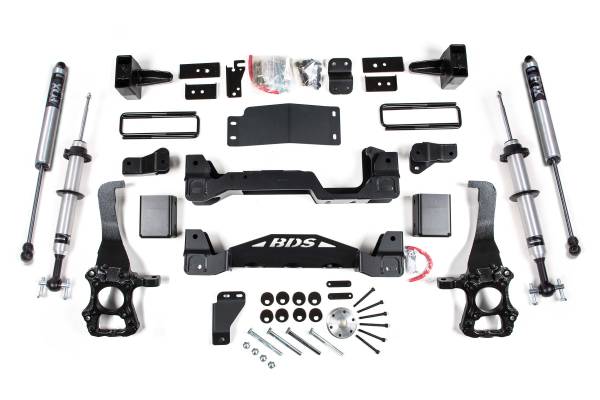

This BDS Suspension 6-inch lift kit with FOX 2.0 front struts is designed for 2015–2020 Ford F150 4WD trucks. The kit provides clearance for up to 37-inch tires and takes advantage of BDS's high-clearance design to improve ground clearance, strength, and off-road protection while correcting suspension and steering geometry for on-road handling. Up front, the kit utilizes FOX 2.0 coil-over struts, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and a skid plate. Steering geometry is corrected at the new taller ride height with a pair of CNC-machined ductile iron steering knuckles, along with sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware. In the rear, high-strength fabricated lift blocks and longer u-bolts lift and level the stance.

Features

• FOX 2.0 Performance IFP shocks eliminate oil aeration, allowing maximum performance from the factory-tuned, precision valving
• High-clearance crossmembers improve strength and off-road capability
• Heavy-duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts lift and level the stance

Specifications

• Front lift: 6 inches via FOX 2.0 Performance Series coil-over struts
• FOX 2.0 strut body: 2.0-inch extruded and machined 6061 T6 aluminum for better heat dispersion
• FOX 2.0 shaft: 5/8-inch hard chrome plated, heat-treated alloy
• FOX 2.0 IFP (Internal Floating Piston) eliminates oil aeration
• Crossmembers: 1/4-inch thick laser-cut steel, high-arched design
• Steering knuckles: CNC-machined ductile cast iron
• Maximum tire fitment: up to 37 inches
• Rear lift: 4-inch or 5-inch block kit (see variant options)

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Cut-off Tool, Reciprocating Saw, Strut Compressor

Important Notes

• 18-inch wheels with 5–5.5-inch total backspacing should be test fit prior to mounting tire to ensure proper clearance to BDS steering knuckle.
• 18-inch or larger diameter wheels required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to 305/60-20 tires.
• E-brake bracket required for factory power steps (part #123018).
• Block kits replace the factory 1-1/4-inch block.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
• Will not fit HD models (7 lug).
