BDS 2.5 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD Diesel | 4 Inch Block Kit | FOX 2.0 Performance Series

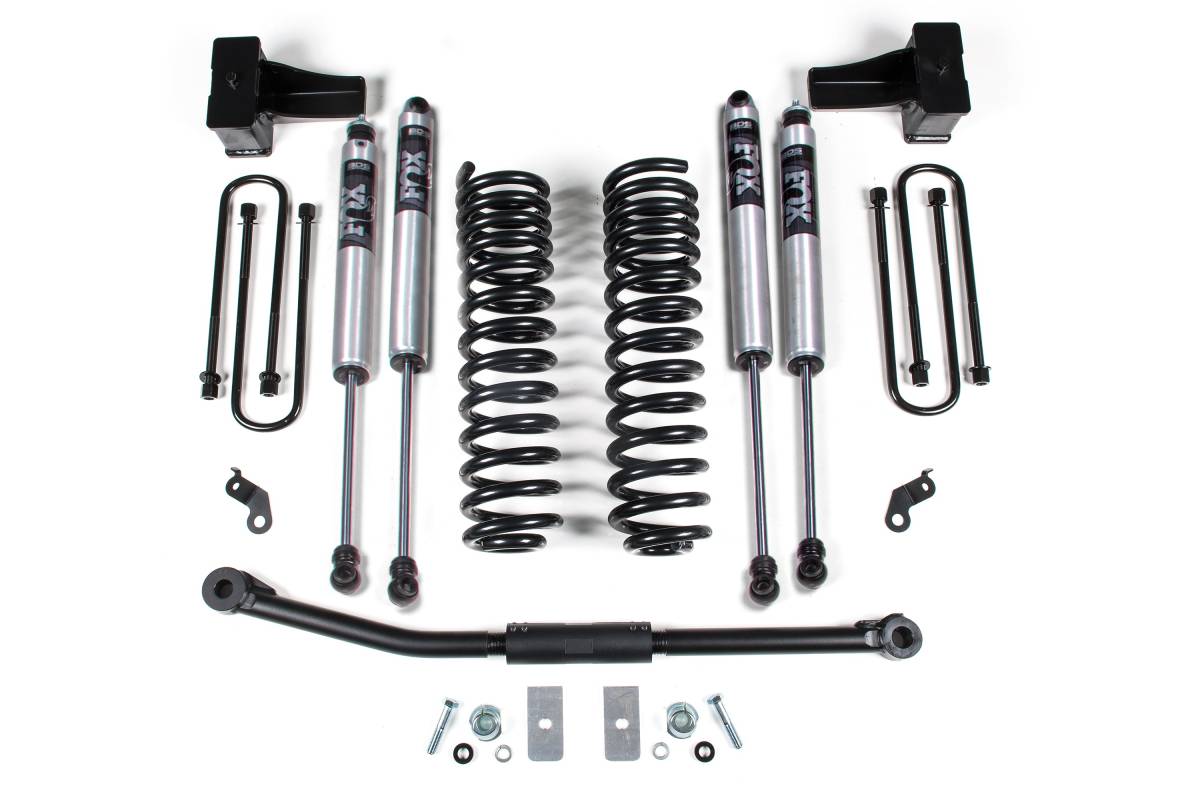

This configuration includes a 4 Inch Rear Block Kit for a level stance front to rear, paired with FOX 2.0 Performance Series shocks. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

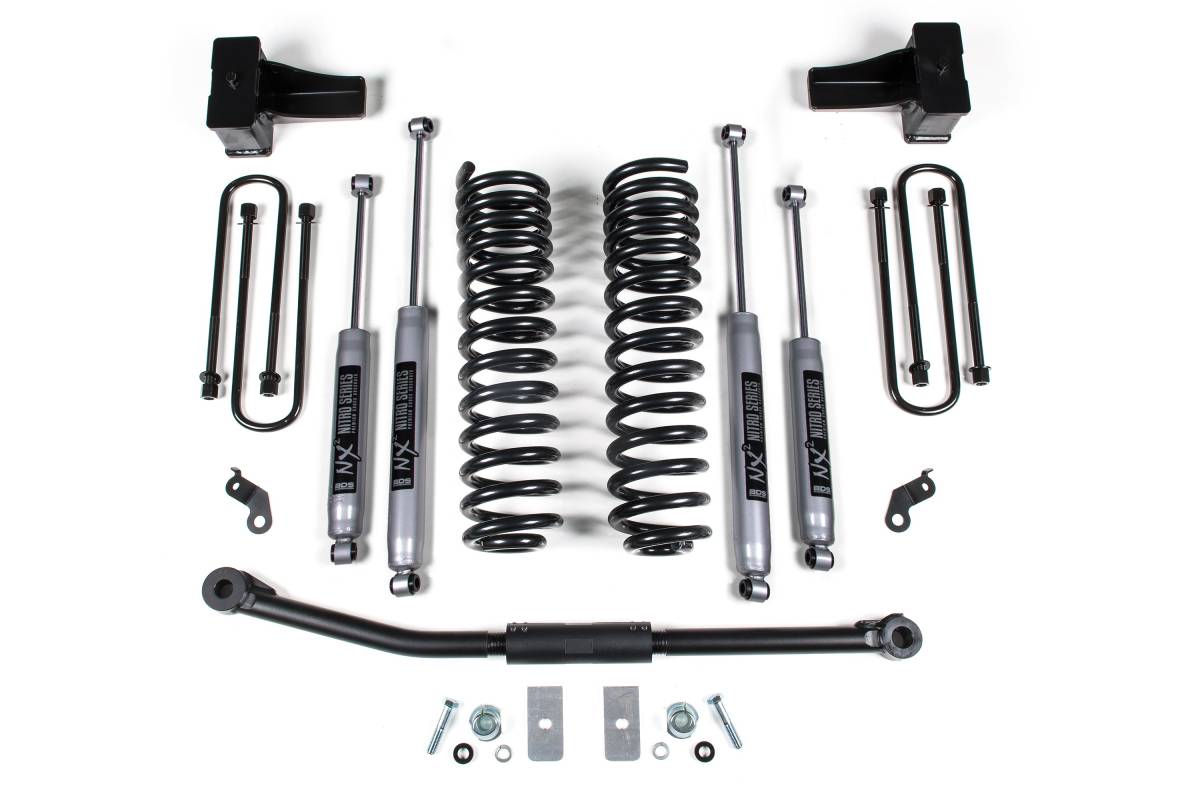

This 2.5-inch radius arm lift kit from BDS Suspension is designed to improve the ride, stance, and capability of 2011–2016 Ford F250 and F350 Super Duty diesel-powered trucks. The kit includes everything necessary to complete the installation and provides clearance for up to 35-inch tires. Up front, the kit features diesel-specific Pro-Ride coil springs, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, brake line brackets, and precision-tuned nitrogen-charged shocks. The rear of the kit utilizes a high-strength fabricated lift block (configuration dependent), longer U-bolts, and a matching set of shocks.

The included HD Adjustable Track Bar is built from 1-3/8-inch solid steel stock, comes pre-assembled with bushings, and bolts directly into the factory mounting points to maintain proper handling and steering geometry across a variety of lift heights.

Features

• 100% bolt-on installation
• Diesel-specific Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear (configuration dependent)
• NX2 Nitro shocks with vehicle-specific valving for better control (base configuration)
• Available upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Brake line brackets included
• Clearance for up to 35-inch tires

Specifications

• Lift Height: 2.5 inches
• Application: 2011–2016 Ford F250/F350 Super Duty 4WD Diesel
• Track Bar: 1-3/8-inch solid steel, adjustable, pre-assembled with bushings
• Rear lift: Fabricated steel block (4-inch, 5-inch, or no block — configuration dependent)
• Coil Springs: Full-length, diesel-specific Pro-Ride dual-rate design
• Tire Clearance: Up to 35 inches

Installation

• Estimated Time: 4 hours
• Difficulty: Moderately Easy
• Tools Required: Basic Hand Tools, Torque Wrench, Jack / Jack Stands

Important Notes

• Designed for Diesel models without top-mounted overload rear springs.
• U-bolts for trucks with overloads are required separately: Part# UBT4028 (Qty 4).
• Models equipped with a 3-3/4-inch rear block from the factory do not require a rear block kit in order to achieve a more level stance.
• For a more tail-high stance, substitute #013519 5-inch rear block kit.
