BDS 6 Inch Lift Kit | Chevy/GMC K5 Blazer & Suburban (1988-1991) 4WD | 4 Inch Block Kit w/ Add-A-Leaf | FOX 2.0 Performance Series

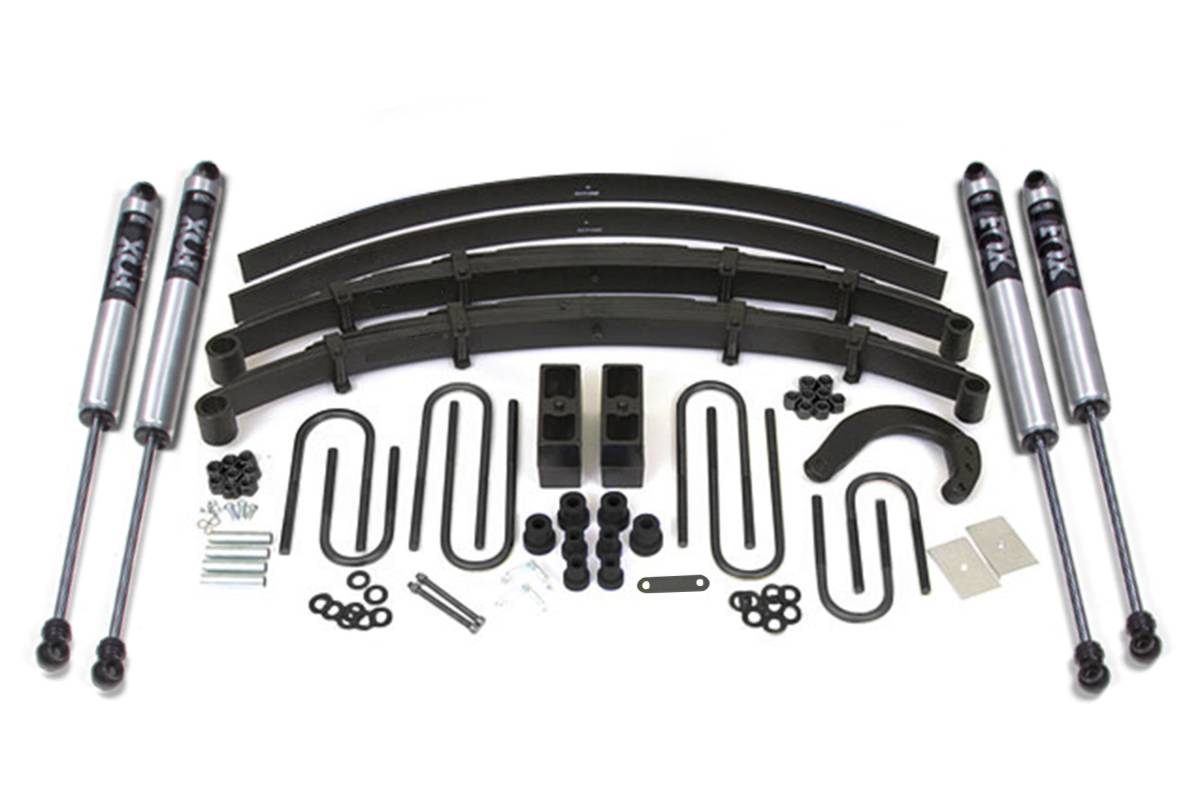

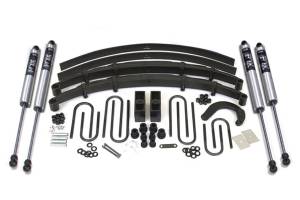

Rear lift achieved via 4 Inch Block Kit with Add-A-Leaf — cast steel lift block and add-a-leaf combination for a level stance. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, and application-specific valving for maximum on- and off-road performance.

Overview

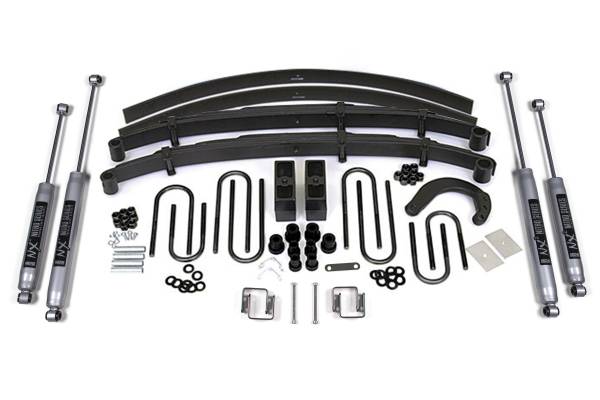

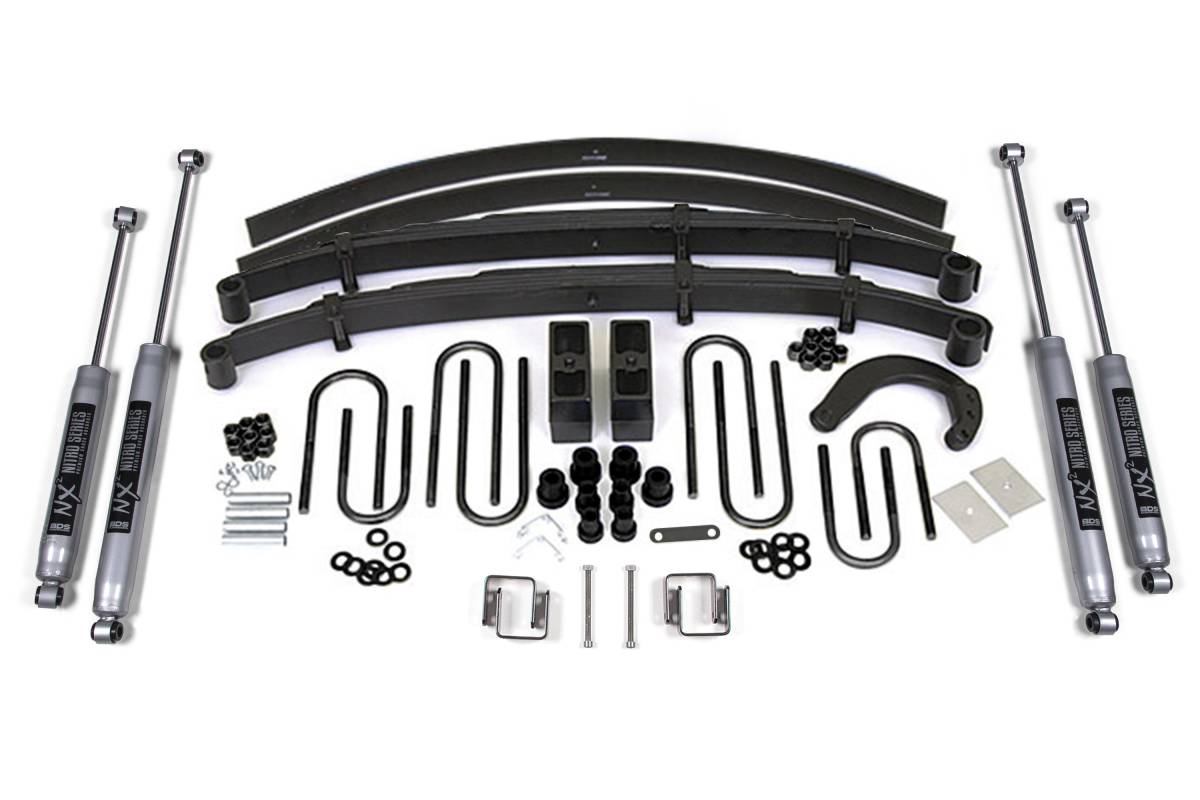

BDS Suspension has engineered this 6-inch lift kit for the 1988–1991 Chevy K5 Blazer, GMC K5 Jimmy, and 1/2-ton Suburban 4WD. The kit includes everything necessary to properly lift the vehicle with clearance for up to 36-inch tires. Up front, the kit features Glide-Ride leaf springs, a 4-inch steering arm for steering correction, brake line brackets, and precision-tuned shocks. In the rear, the kit utilizes either a high-strength cast steel lift block with add-a-leaf or Glide-Ride leaf springs, longer U-bolts, and a matched set of shocks.

Features

• 100% bolt-on installation
• Front Glide-Ride leaf springs provide full lift height and increased capacity with a multi-leaf progressive spring rate design for a smooth ride
• Exclusive triple-stage leaf spring design reduces axle wrap and creates a more controlled, stable feel
• 4-inch steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf option provides level stance from front to rear
• Rear Glide-Ride leaf spring option eliminates need for a lift block and maintains factory payload weight ratings
• Standard NX2 Nitro shocks with vehicle-specific valving
• Optional upgrade to FOX 2.0 Performance Series shocks for enhanced on- and off-road performance
• Clearance for up to 36-inch tires

Specifications

• Lift Height: 6 inches
• Front: Glide-Ride multi-leaf progressive leaf springs, 4-inch steering arm, brake line brackets
• Rear (Block Kit option): Cast steel 4-inch lift block, add-a-leaf, longer U-bolts
• Rear (Leaf Spring option): Glide-Ride leaf springs with new center pins, longer U-bolts
• NX2 Nitro Shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
• FOX 2.0 Performance Series Shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish
• Tire Clearance: Up to 36 inches

Installation

• Estimated Time: 6 hours
• Difficulty: Moderate
• Special Tools Required: Ball Joint Separation Tool, Cut-off Tool

Important Notes

The 1/2-ton commonly came with a factory 52-inch eye-to-eye rear leaf spring. However, some were produced with a 56-inch rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering. If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section. Some vehicles came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options. #001408 comes with OE style rubber bushings installed. Exhaust modification may be required to clear the front driveshaft.
