BDS 3 Inch Lift Kit | 2007-2011 Jeep Wrangler JK 2-Door | FOX 2.0 Performance Series Shocks w/ Disconnects

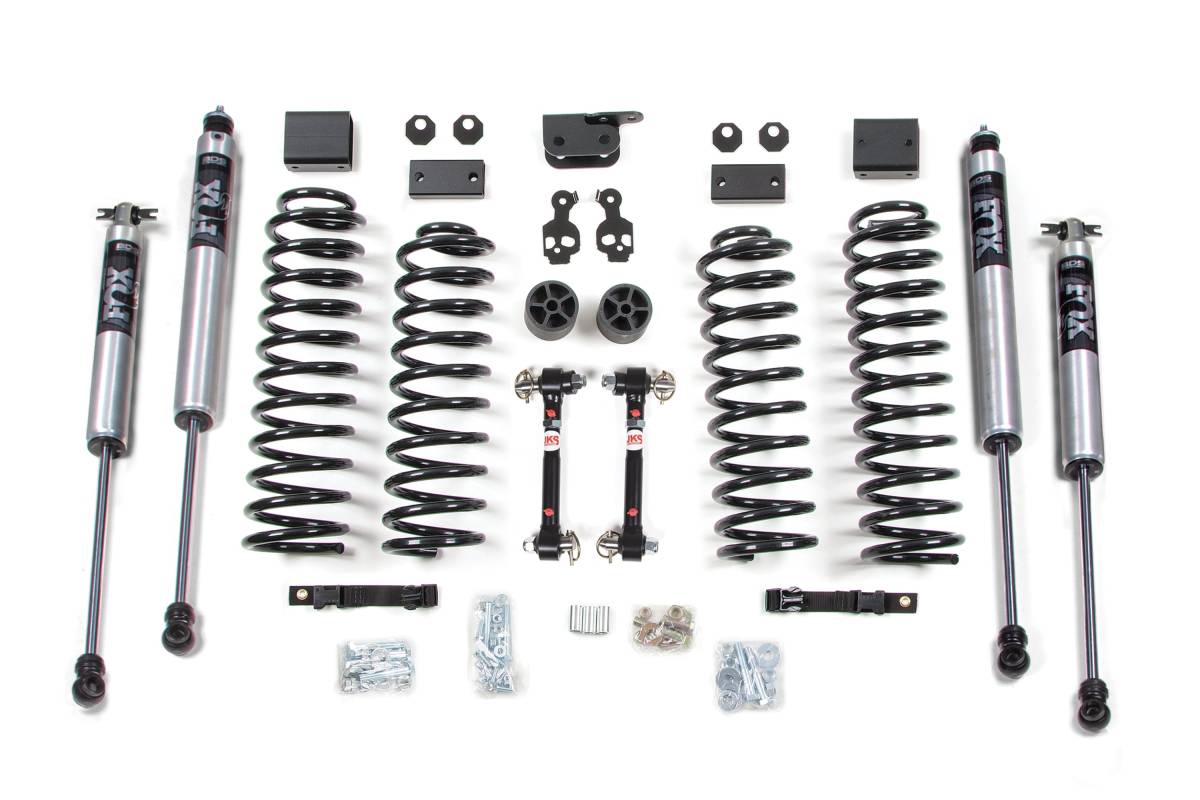

Configured with FOX 2.0 Performance Series shocks and sway bar disconnects. The FOX 2.0 Performance Series features a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, and application-specific valving to maximize performance.

The included sway bar disconnects gain 30 percent more axle articulation by disconnecting the front sway bar. Stainless tapered mounting posts and self-align bushings allow connection or disconnection on unlevel surfaces. Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability. Required for use on Rubicon models with electronic disconnect.

Overview

This 3-inch coil spring lift kit from BDS Suspension is designed for the 2007-2011 Jeep Wrangler JK 2-Door, improving stance and providing clearance for up to 35-inch tires. Up front, the kit includes 3-inch Pro-Ride coil springs capable of full coil bind and 2-inch bump stop extensions to control compression travel while increasing wheel travel. Also included are brake line brackets, alignment cams to fine-tune front caster angles, and sway bar links. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. Pro-Ride coil springs are full-length, gas-specific, and progressive rate, manufactured from high tensile steel as direct OE replacements engineered with properly sized wire diameter for maximum reliability without premature coil bind.

Features

• Pro-Ride coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved off-road flex (disconnect option)
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 Nitro Series gas shocks, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks for improved damping
• Allows clearance for 35-inch tires
• Includes brake line brackets
• Includes bump stop extensions

Installation

• Estimated Time: 6 hours
• Difficulty: Moderately Easy
• Tools Required: Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

• Exhaust modification may be required.
• This kit is FMVSS No. 126 Compliant.
• This kit is right hand drive compatible.
