Configured with NX2 Nitro Series shocks and Fixed Sway Bar Links. The NX2 Nitro Series features a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish. Fixed sway bar links feature heavy-duty steel construction with zinc finish, polyurethane hourglass bushings for long life and quiet operation, and improve handling with proper sway bar operating angle.

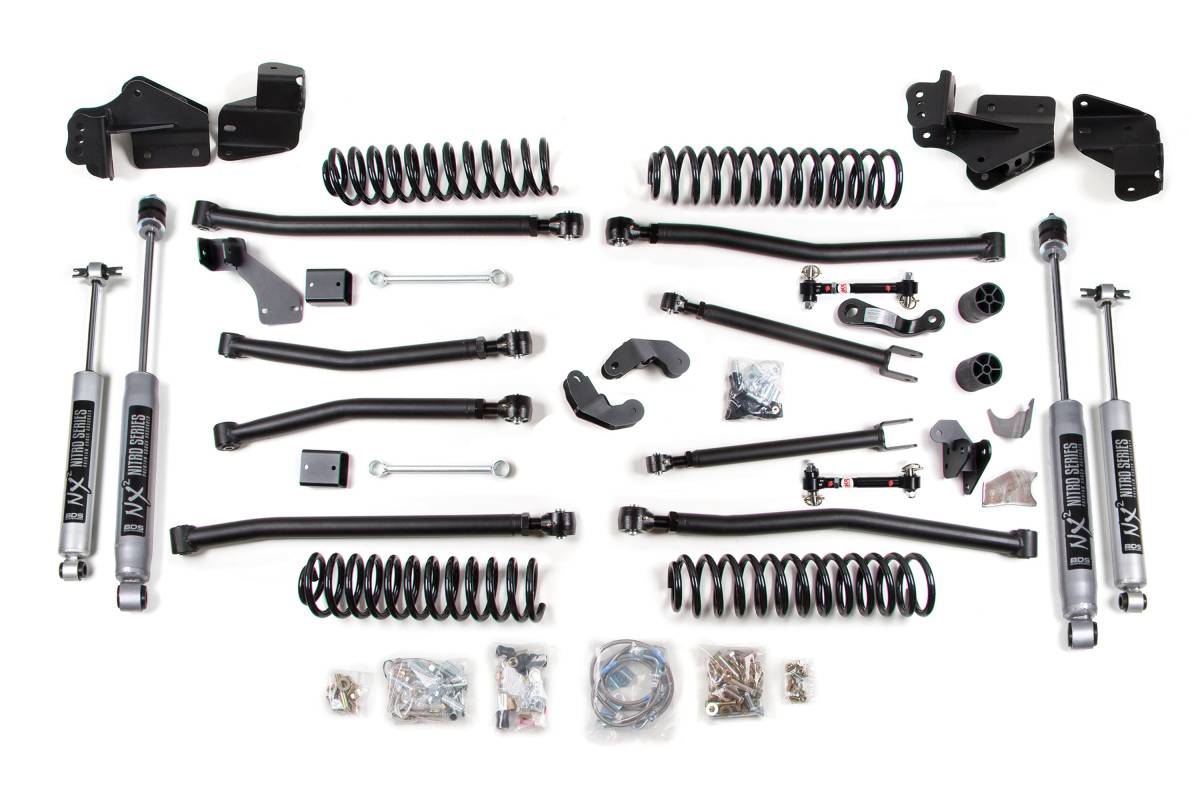

This 4-inch long arm lift kit from BDS Suspension is designed for 2007-2018 Jeep Wrangler 2-Door models. The kit provides clearance for up to 37-inch tires and improves on the factory 4-link setup with a redesigned 4-link long arm conversion to improve articulation and offer better control throughout wheel travel.
Up front, the kit includes new pivot mounts constructed from 1/4-inch thick steel, heavy duty lower flex arms, adjustable upper flex arms, 4-inch Pro-Ride coil springs capable of full coil bind, and 3-inch bump stop extensions to control compression travel while increasing wheel travel. Also included are braided stainless steel brake lines, sway bar links, a front track bar relocation bracket, and a pitman arm to improve steering and handling geometry.
In the rear, the kit utilizes new pivot mounts designed to work with heavy duty lower flex arms, adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift.
Upgrading to long arms adds strength, improves handling, and takes off-road articulation to the next level. This conversion uses massive 1/4-inch steel frame-mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.
Full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high tensile steel and engineered with properly sized wire diameter, these direct OE replacement coil springs deliver maximum reliability without premature coil bind.
Will not fit 2WD models. The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended. Exhaust modification may be required.
