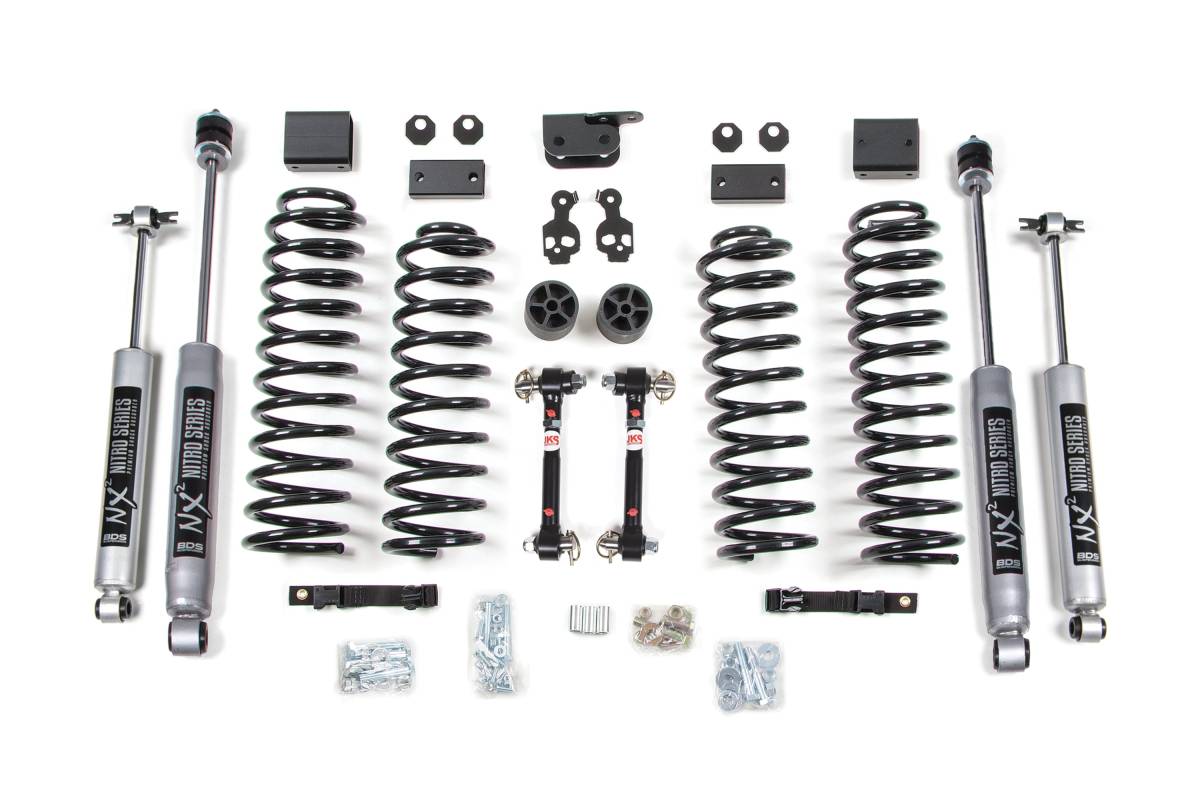

BDS 3 Inch Lift Kit | 2007-2011 Jeep Wrangler JK 4-Door | NX2 Nitro Series Shocks w/ Fixed Links

Suspension Kits

BDS1412H
Pricing: $678.65
Qty:

Description

Configured with NX2 Nitro Series shocks and Fixed Sway Bar Links. The NX2 Nitro Series features a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Fixed sway bar links feature heavy-duty steel construction with a zinc finish, polyurethane hourglass bushings for long life and quiet operation, and improve handling with proper sway bar operating angle.

Overview

This 3-inch coil spring lift kit from BDS Suspension is designed for the 2007-2011 Jeep Wrangler JK 4-Door. The kit includes everything necessary to improve stance and provide clearance for up to 35-inch tires. Up front, the kit includes 3-inch Pro-Ride coil springs capable of full coil bind, 2-inch bump stop extensions to control compression travel while increasing wheel travel, brake line brackets, alignment cams to fine-tune front caster angles, and sway bar links. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. Pro-Ride coil springs are full-length, gas-specific, progressive rate springs manufactured from high tensile steel. Engineered with properly sized wire diameter as direct OE replacements, they are designed for maximum reliability without premature coil bind.

Features

  • Pro-Ride coil springs for improved ride quality and more articulation
  • Sway bar links and extended rear link for improved off-road flex
  • Rear track bar bracket repositions rear axle under vehicle
  • Lower cam locks to correct caster for alignment
  • Choice of NX2 Nitro Series gas shocks or FOX 2.0 / FOX 2.5 performance series shocks for improved damping
  • Provides clearance for up to 35-inch tires
  • 2-inch bump stop extensions to control compression travel and increase wheel travel
  • Brake line brackets included

Installation

  • Estimated Installation Time: 6 hours
  • Difficulty: Moderately Easy
  • Tools Required: Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

  • This kit is FMVSS No. 126 Compliant.
  • This kit is right-hand drive compatible.
