BDS 3 Inch Lift Kit | 2007-2011 Jeep Wrangler JK 4-Door | FOX 2.0 Performance Series Shocks w/ Fixed Links

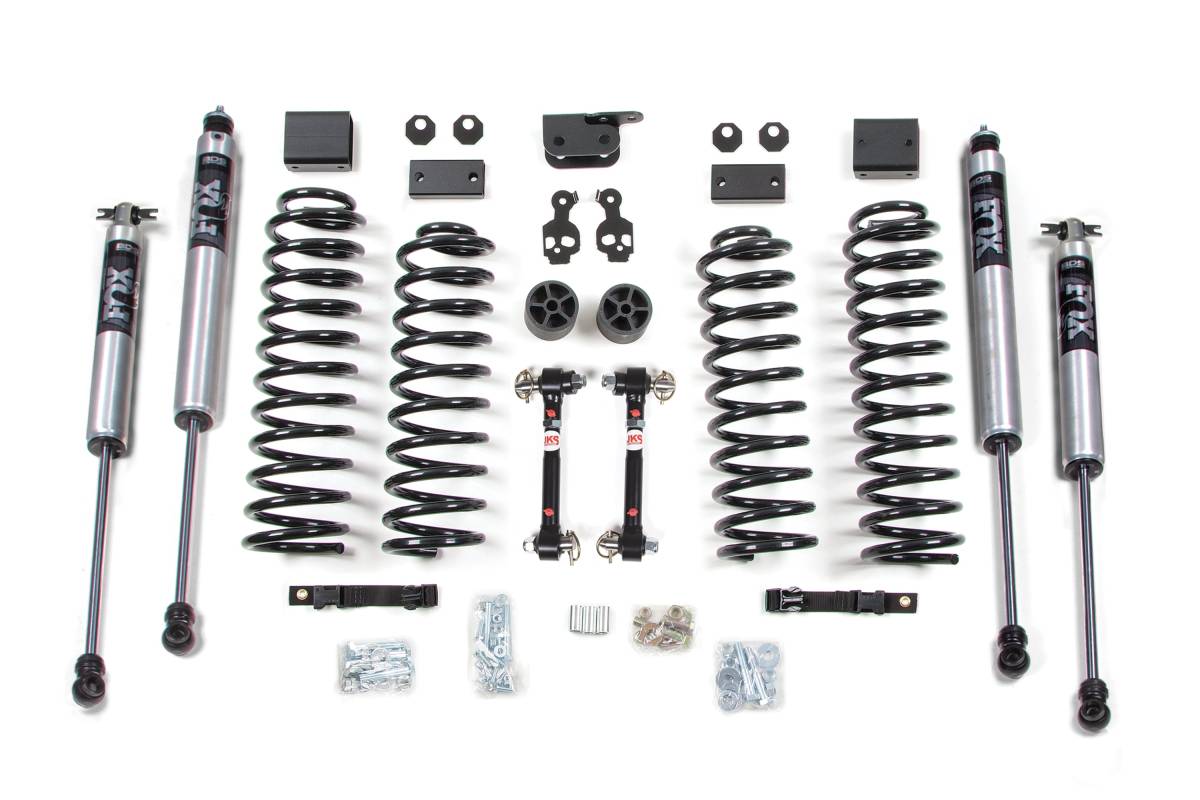

Configured with FOX 2.0 Performance Series shocks and Fixed Sway Bar Links. The FOX 2.0 Performance Series features a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, and application-specific valving for maximized performance. Clear anodized finish for long-lasting durability.

Fixed sway bar links feature heavy-duty steel construction with a zinc finish, polyurethane hourglass bushings for long life and quiet operation, and improve handling with proper sway bar operating angle.

Overview

This 3-inch coil spring lift kit from BDS Suspension is designed for the 2007-2011 Jeep Wrangler JK 4-Door. The kit includes everything necessary to improve stance and provide clearance for up to 35-inch tires. Up front, the kit includes 3-inch Pro-Ride coil springs capable of full coil bind, 2-inch bump stop extensions to control compression travel while increasing wheel travel, brake line brackets, alignment cams to fine-tune front caster angles, and sway bar links. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. Pro-Ride coil springs are full-length, gas-specific, progressive rate springs manufactured from high tensile steel. Engineered with properly sized wire diameter as direct OE replacements, they are designed for maximum reliability without premature coil bind.

Features

• Pro-Ride coil springs for improved ride quality and more articulation
• Sway bar links and extended rear link for improved off-road flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment

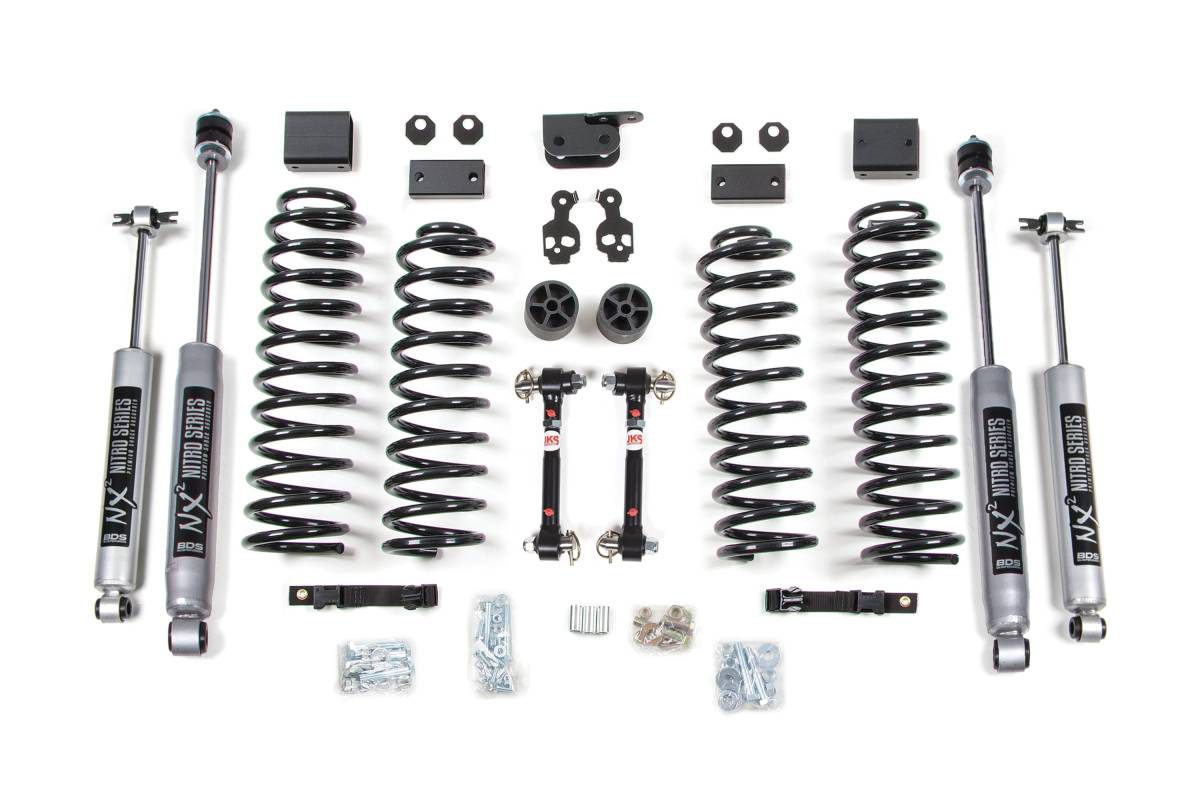

• Choice of NX2 Nitro Series gas shocks or FOX 2.0 / FOX 2.5 performance series shocks for improved damping
• Provides clearance for up to 35-inch tires
• 2-inch bump stop extensions to control compression travel and increase wheel travel
• Brake line brackets included

Installation

• Estimated Installation Time: 6 hours
• Difficulty: Moderately Easy
• Tools Required: Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

• This kit is FMVSS No. 126 Compliant.
• This kit is right-hand drive compatible.
