BDS 3 Inch Lift Kit | 2012-2018 Jeep Wrangler JK 4-Door | FOX 2.5 Performance Elite Shocks w/ Disconnects

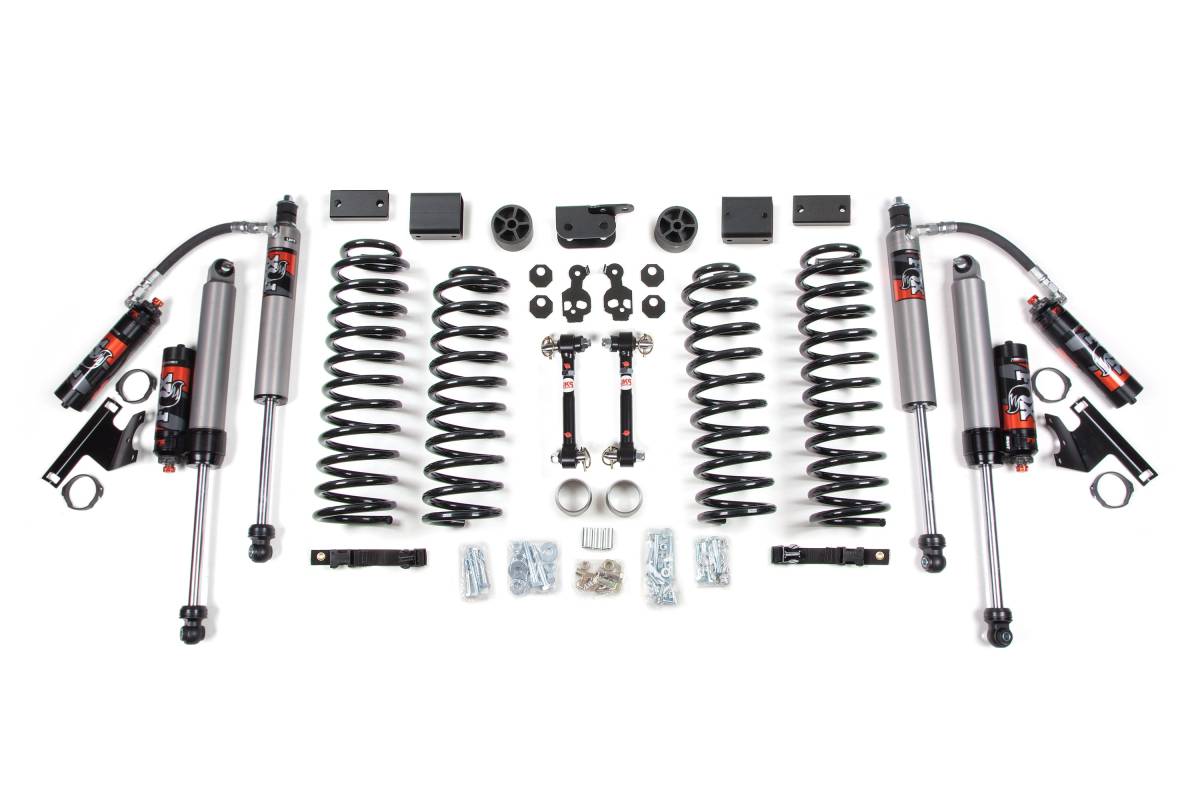

Configured with FOX 2.5 Performance Elite shocks and sway bar quick disconnects. The FOX 2.5 Performance Elite features a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir design that separates shock oil from high-pressure nitrogen, a DSC Dual Speed Compression Adjuster standard, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and is fully serviceable for a lifetime of use.

The sway bar quick disconnects provide 30 percent more axle articulation by allowing you to disconnect the front sway bar. Features include convenient grease fittings for easy bushing lubrication, stainless tapered mounting posts and self-aligning bushings for on- or off-level surface connection/disconnection, and spherical bushings providing unrestricted 360-degree rotation with 11 degrees of misalignment capability. Required for use on Rubicon models with electronic disconnect.

Overview

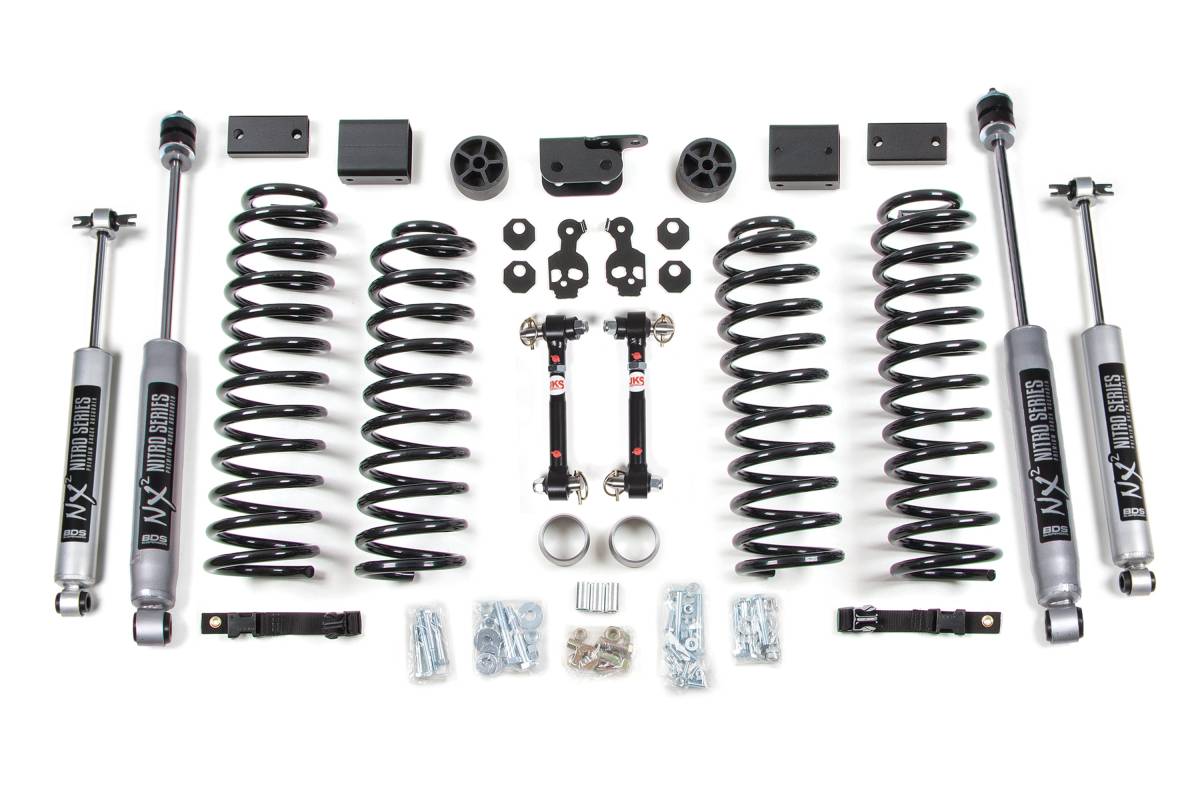

This 3-inch coil spring lift kit from BDS Suspension is designed for the 2012-2018 Jeep Wrangler JK 4-Door. The kit improves stance and provides clearance for up to 35-inch tires. Up front, the kit includes 3-inch Pro-Ride coil springs capable of full coil bind, 2-inch bump stop extensions to control compression travel while increasing wheel travel, brake line brackets, alignment cams to fine-tune front caster angles, and sway bar links. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. Pro-Ride coil springs are full-length, gas-specific, progressive-rate springs manufactured from high-tensile steel with properly sized wire diameters, engineered for maximum reliability without premature coil bind.

Features

• Pro-Ride coil springs for improved ride quality and more articulation
• Sway bar links and extended rear link for improved off-road flex
• Rear track bar bracket repositions the rear axle under the vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 Nitro Series gas shocks or FOX 2.0 / FOX 2.5 Performance Series shocks for improved damping
• Provides clearance for up to 35-inch tires

Installation

• Estimated Time: 6 hours
• Difficulty: Moderately Easy
• Tools Required: Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

• Exhaust modification may be required.
• This kit is FMVSS No. 126 Compliant.
• This kit is right-hand drive compatible. Follow right-hand drive installation instructions when installing this kit on a right-hand drive vehicle.
• If using the rear sway bar links included, the sway bar drop will not need to be installed.
• Requires a wheel with 4.5-inch backspacing or less for tire clearance.
