Configured with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, and application-specific valving. Clear anodized finish with increased off-road capabilities.
Overview

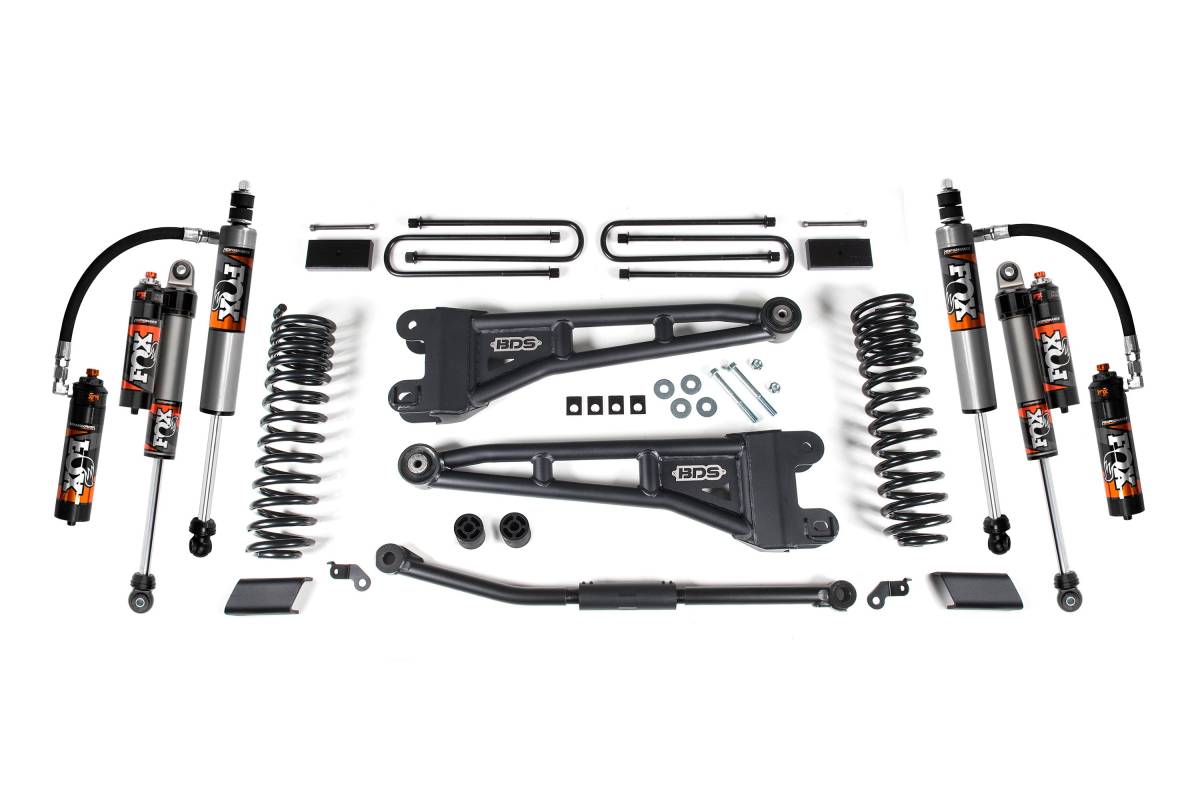

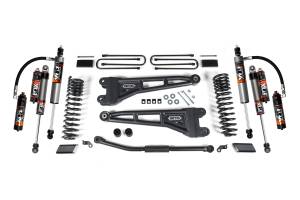

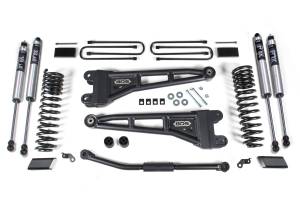

This 2.5-inch radius arm lift kit from BDS Suspension is designed for diesel-powered Ford F450 Super Duty trucks (2023–2026), improving stance, performance, and capability with clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement tubular radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, and a matching rear shock in your choice of configuration.
The heavy-duty tubular radius arms mount into the factory location, offer caster adjustment across a wide range of lift heights, and use an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. The diesel-specific Pro-Ride coil springs are full-length and designed to provide the correct lift height with a smooth, predictable ride across various terrains. The BDS high-strength adjustable track bar is built from 1-3/8-inch solid steel stock, comes pre-assembled with bushings, and bolts directly into the factory mounting points to recenter the front axle.
Features
- 100% bolt-on installation
- Diesel-specific Pro-Ride dual-rate coil springs for smooth ride across varied terrain
- Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel rear lift blocks provide a level stance from front to rear
- Longer U-bolts included for rear block installation
- Sway bar relocation hardware and brake line brackets included
- Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite rear shocks
- Clearance for up to 35-inch tires
Specifications
- Lift Height: 2.5 inches
- Track Bar Material: 1-3/8-inch solid steel stock
- Radius Arms: High-strength tubular steel with OE-style rubber frame bushing
- Rear Lift Method: Fabricated steel lift block with longer U-bolts
- Fits: 2023–2026 Ford F450 Super Duty (diesel models only)
- Tire Fitment: Up to 35-inch tires (see tire and wheel fitment section for recommended specifications)
Installation
- Estimated Time: 5 hours
- Difficulty: Moderate
- Tools Required: 30mm Socket, Basic Hand Tools, Torque Wrench, Jack / Jack Stands, Pitman Arm Puller
Important Notes
- Fits diesel models only.
- These kits are designed for the F-450 style front end. They do not work with the standard Ford Super Duty F-250/350 axle width.
- Vehicles with radius arm mounted ride height sensors will require BDS123303.
- Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in the tire and wheel fitment section.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
