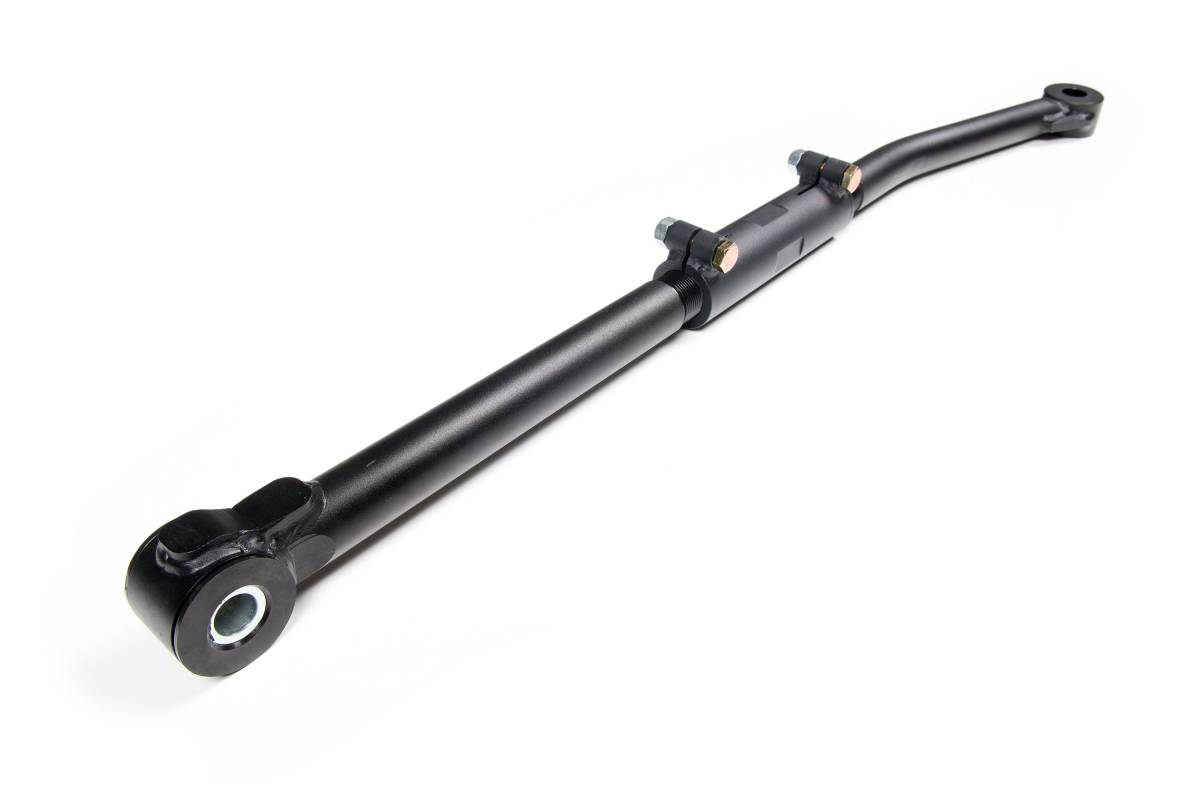

BDS Front Adjustable Track Bar | 1-1/2" Solid Steel | 2005-2016 Ford F250/F350 Super Duty 4WD

Overview

Replace your stock front track bar on 2005–2016 Ford F-250/F-350 Super Duty 4WD or 2020–2026 F-450 Super Duty 4WD vehicles with this heavy-duty BDS upgrade. Constructed from 1-1/2" solid steel stock with gusseted ends for added strength, this track bar is designed for use on 0 to 3 inches of lift and can be combined with most aftermarket track bar brackets for taller lift heights. Adjustments are made at the 1-3/8" x 12 fine-threaded center turnbuckle with pinch-bolt ends, allowing easy tuning to properly recenter the front axle across a range of lift heights. The bar is specially formed for proper clearance around critical front-end components and installs without the need to modify factory frame or axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability.

Features

• Heavy-duty 1-1/2" solid stock steel construction
• Center pinch-bolt style turnbuckle adjustment
• Allows front axle to be recentered at a wide range of lift heights
• Specially formed to alleviate stress on mount points
• Ready to install without need to clear factory frame or axle mounts

Specifications

• Material: Steel
• Lift Height: 0–8"
• Bushings Included: Yes

Installation

• Estimated Installation Time: 1 hour
