Rear shocks configured with FOX 2.5 Performance Elite shocks. These 2.5-inch impact extruded aluminum body shocks feature a 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir to separate shock oil from high-pressure nitrogen, and a DSC (Dual Speed Compression) adjuster with 10 low-speed and 12 high-speed compression levels for precise tuning. Fully serviceable and backed by a 1-year manufacturer's warranty.
Overview

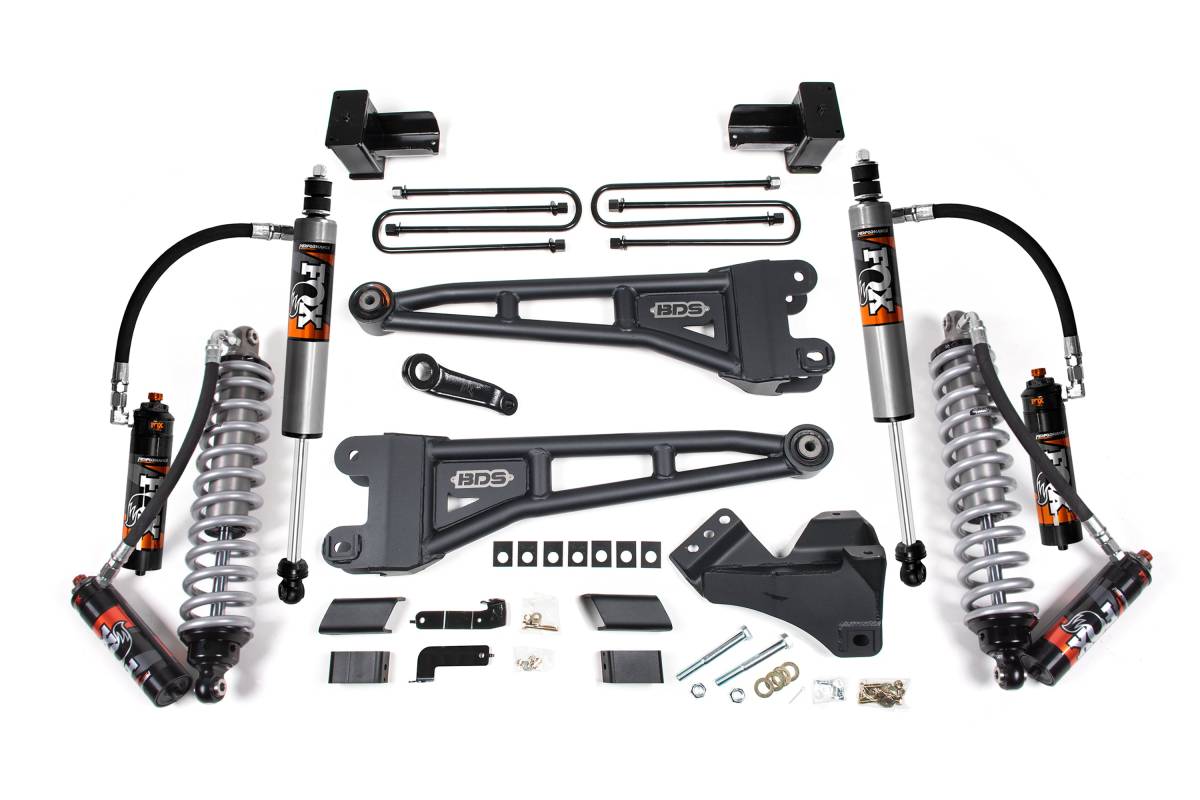

The BDS 4-inch Radius Arm Lift Kit is engineered for the 2023–2026 Ford F-450 Super Duty 4WD (diesel models only). Built around heavy-duty DOM steel radius arms, this kit prioritises durability, straightforward design, and long-term reliability — qualities well-suited to the demands of heavy-duty truck use including towing and hauling. The front end is upgraded with FOX 2.5 Performance Elite coilovers for responsive, comfortable performance on- and off-road. Steering geometry correction is addressed with a forged drop pitman arm and heavy-duty track bar drop bracket to keep suspension components in phase through travel.
Features
- Heavy-duty DOM steel radius arms restore proper caster angle, axle alignment, and suspension geometry for predictable steering, stable handling, and reduced tire wear
- Radius arms mount into the factory location with caster adjustment to accommodate a range of lift heights
- OE-style rubber bushings at frame mounts isolate noise and vibration, provide a smooth and quiet ride, and require no ongoing greasing or maintenance
- FOX 2.5 Performance Elite front coilovers — 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external remote reservoir, and DSC (Dual Speed Compression) adjuster with 10 low-speed and 12 high-speed compression levels
- BDS forged drop pitman arm to maximise steering radius at 4 inches of lift
- Heavy-duty track bar drop bracket recenters the front axle and keeps steering components in phase through suspension travel
- Choice of FOX 2.5 Performance Elite or FOX 2.5 Performance Series HTO rear shocks
Specifications
- Lift Height: 4 inches
- Radius Arm Material: Heavy-duty DOM steel
- Front Shocks: FOX 2.5 Performance Elite coilovers — 2.5-inch diameter, external remote reservoir, black anodized aluminum reservoir, DSC adjuster
- Rear Shock Options: FOX 2.5 Performance Elite or FOX 2.5 Performance Series HTO
- Pitman Arm: BDS forged drop pitman arm
- Frame Mount Bushings: OE-style rubber (service-free)
- Shock Warranty: 1-year manufacturer's warranty (FOX)
Installation
- Estimated Time: 8–10 hours
- Difficulty: Difficult
- Tools Required: Cut-off wheel or equivalent, reciprocating saw, welding equipment, torque wrench capable of 405 ft-lbs
Important Notes
- Fits diesel models only.
- These kits are designed for the F-450 style front end. They do not work with the standard Ford Super Duty F-250/350 axle width.
- Vehicles with radius arm mounted ride height sensors will require BDS123303.
- Larger tires on stock wheels are not recommended due to brake line clearance requirements. Use recommended specifications listed in the tire and wheel fitment section.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, LiDAR, and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control, and other functions as they operated prior to installation. Please connect with your local dealership or ADAS service center.
- Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
