BDS Transfer Case Indexing Ring | 6-Bolt | 2014-2018 Ram 2500 & 2013-2018 Ram 3500 4WD | Gas

Overview

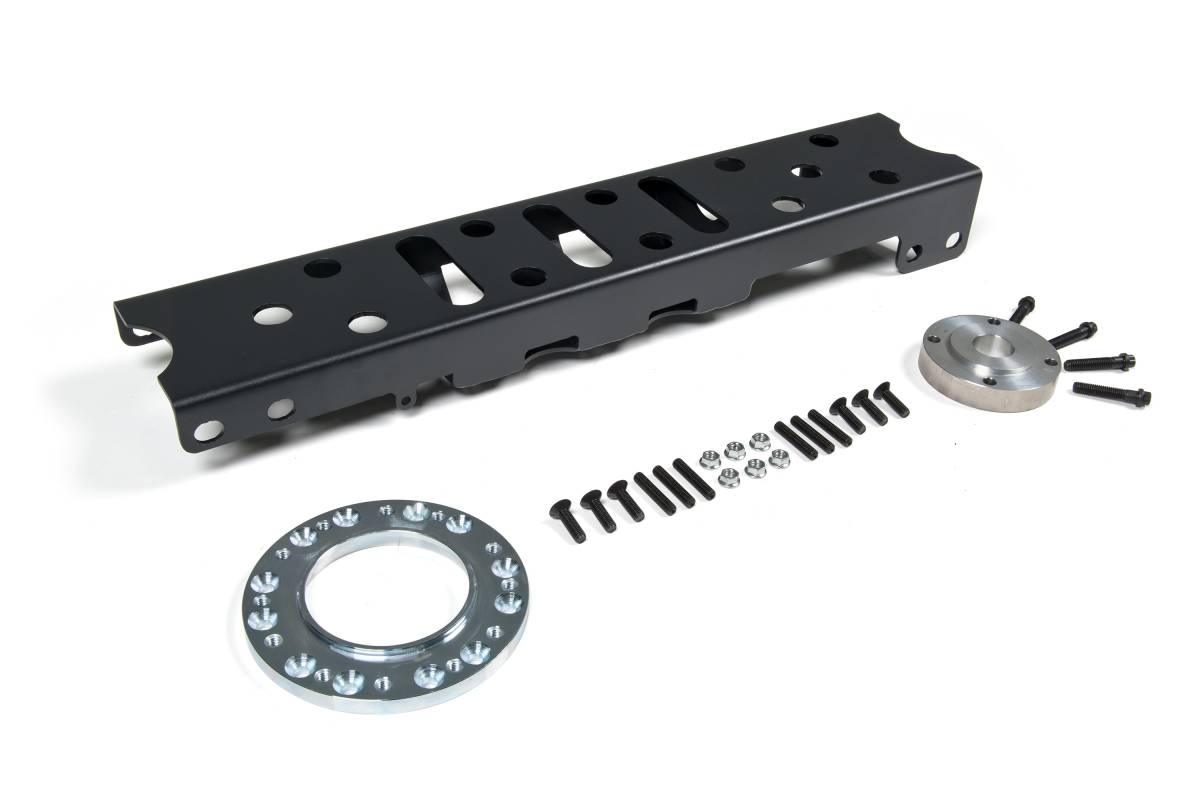

Prevent front driveline issues on your lifted gas-powered 2014–2018 Ram 2500 or 2013–2018 Ram 3500 4WD truck with the BDS Transfer Case Indexing Ring Kit. At 6 inches of lift and above, it is necessary to index the transfer case to allow the front driveline to reconnect and eliminate vibrations. Designed for 6-bolt flange transmissions, this indexing ring kit features optimal spline engagement and is dual-drilled to allow positioning for compatibility with a range of lift heights. The kit also includes a billet aluminum driveshaft spacer and all required hardware for a complete installation.

Features

• Indexing rings eliminate front driveline vibrations
• Proper clearance prevents cross-member interference
• Heavy duty steel construction for maximum strength
• Designed with optimal spline engagement to prevent transmission-to-transfer case damage
• Dual-drilled for compatibility with a range of lift heights
• Includes billet aluminum driveshaft spacer and all necessary hardware

Specifications

• Bolt pattern: 6-bolt flange transmission
• Recommended use: 6 inches of lift and above
• Compatible vehicles: 2014–2018 Ram 2500 4WD (Gas), 2013–2018 Ram 3500 4WD (Gas)

Installation

• Estimated installation time: 3–4 hours

Important Notes

DO NOT USE FILL PORT FOR FLUID LEVEL ON AN INDEXED TRANSFER CASE. THE FILL PORT WILL BE LOWER THAN OE FILL LEVEL HEIGHT: If any maintenance requiring fluid change or refill has or is being done, before reinstalling the transfer case check fluid levels on bench and fill the transfer case with the manufacturer recommended volume of fluid.
