6" Big Lift Kit 2019-2023 Ram 3500 HD High Output Diesel 4WD | 49-19620

RL 6'' LIFT KIT SHOCKS RAM 3500

• Does not work with HEMI Gasoline engine
• Fabricated steel radius arm drop brackets
• Includes 6" front lift springs and 5" rear spacers
• Longer bump stops
• New pitman arm
• New transmission crossmember
• All Allnew DIS transfer case clocking ring kit
• Not compatible with automatic Not compatible with automaticleveling rear air suspension models
• (4) Bilstein 5100 series shocks
• Not compatible with automaticleveling rear air suspension models
• Not compatible with Classic models
• Not compatible with dually models
• Only available for 3500 HD High Output Motor
• Sway bar drop brackets
• Track bar drop bracket
• 201920192023 Ram 3500 4WD HD 6"" lift kit
• 20192023 Ram 3500 4WD HD 6" lift kit
• Allnew DIS transfer case clocking ring kit

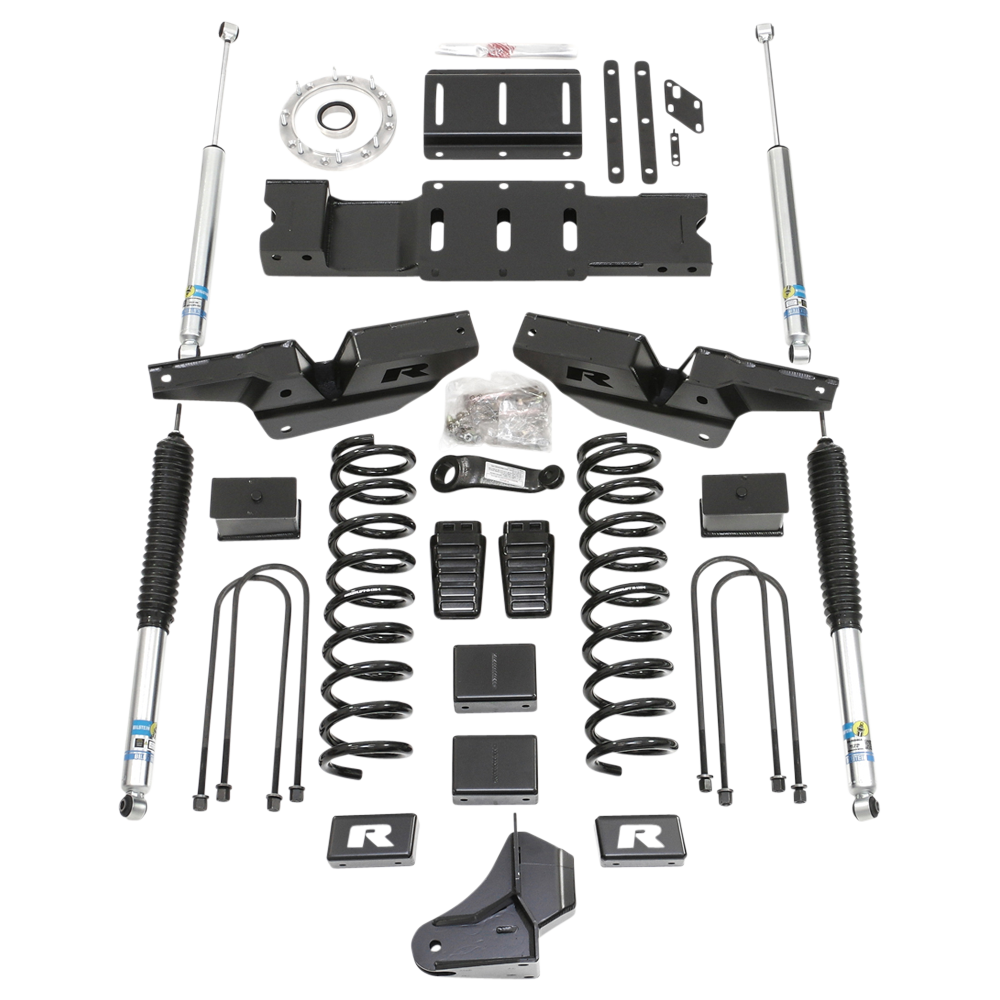

6" Big Lift Kit 2019-2023 Ram 3500 HD High Output Diesel 4WD

The new RAM HD trucks are more popular than ever and the ReadyLIFT 6" lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners? How about engineering a 6" solution for the RAM 3500 HD trucks? That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle? Well, that's exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember. Why go to all that trouble to achieve 6" Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-19620 6" lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road. Kit 49-19620 includes the new DIS re-positioning components, heavy-duty and great riding 6" lift front springs, 5" lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Bilstein 5100 series front/rear shocks. *Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
