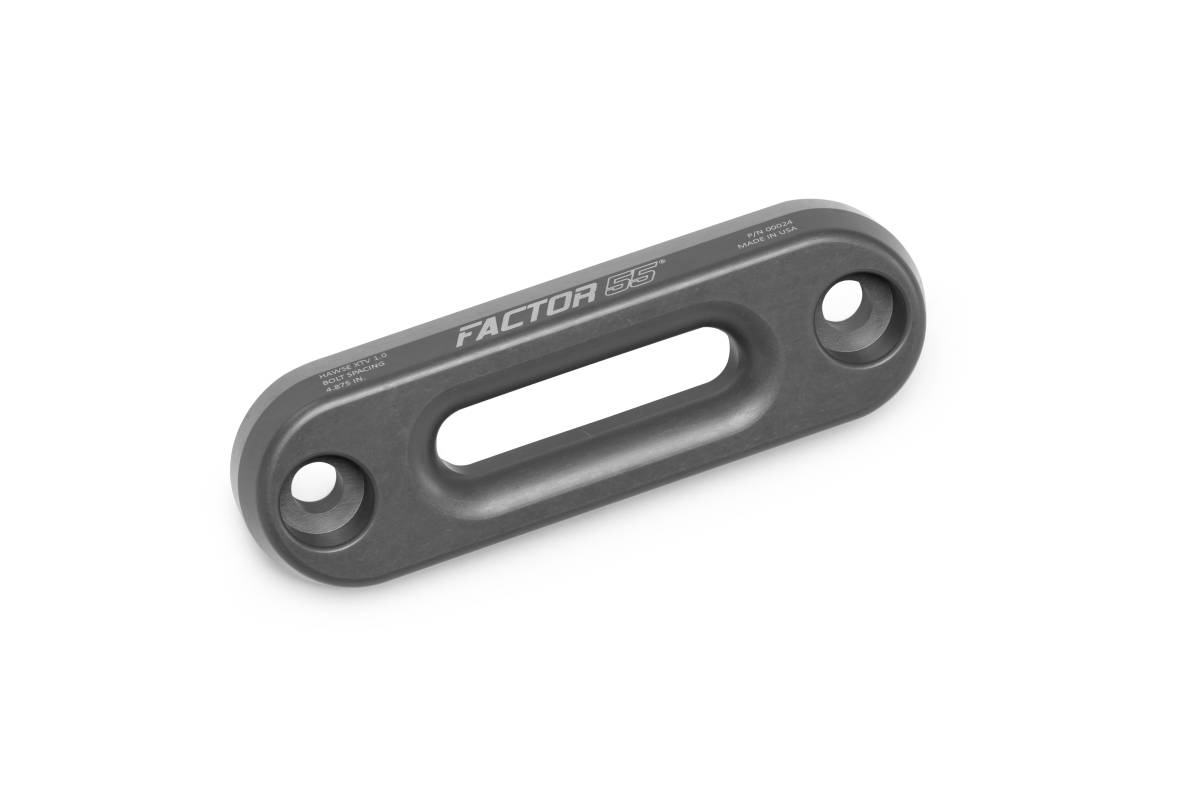

HAWSE XTV FAIRLEAD 4.875" | 00024

For smaller or short drum powersport winches with 4.875" bolt spacing Always confirm that the synthetic rope cannot make contact to any sharp edges like the opening in the steel fairlead mounting plate or bumper opening. In some cases it may be required to grind this slot larger. Always sand and deburr this opening after any grinding operation.

Factor 55 HAWSE XTVFAIRLEAD 4.875"

• Durable MIL-A-8625F TYPE III gun metal gray hard anodized finish to resist the abrasion damage from a dirty/gritty synthetic winch rope rubbing across it
• Large fillet radius and machined outer corner chamfer to reduce stress and extend the life of synthetic rope
• Fairleads DO NOT come with mounting hardware
• 4.875" Bolt Mount Spacing
• Overall dimension: 6.25? x 1.95?
• Made in the USA

The XTV Hawse Fairlead is machined from 1 in thick 6000 series aluminum.This results in large outer fillet radius for the synthetic rope to slide against.

Factor 55?s XTV Hawse Fairleads are exceptionally durable and help extend the life of your synthetic rope. They?re CNC machined from 1?-thick USA 6000 series aluminum bar?twice as thick as the industry standard. The extra-thick aluminum bar design gives a larger radius for synthetic rope to slide against, which means less wear and tear on the rope resulting in a longer service life. These fairleads wear a super-durable MIL-A-8625F TYPE III gunmetal gray hard-anodized finish with a laser engraved logo. This finish is, hands down, the best choice for a hawse fairlead. The finish leaves a .002?-thick Al2O3 ceramic coating that is in the top-five hardest materials known to mankind (not far away from diamond hardness).
