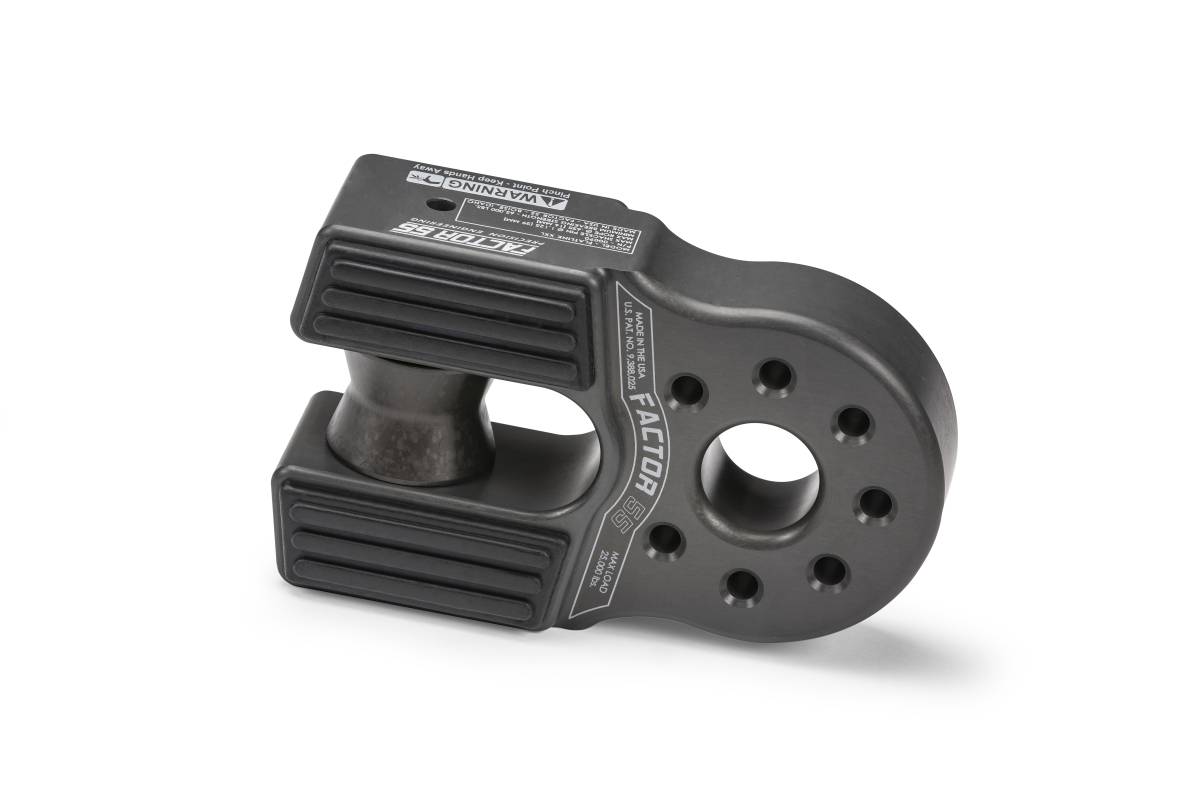

FLATLINK XXL WINCH SHACKLE MOUNT -- GRAY | 00090-06

Fits shackle pin diameters of 1 1/8". 7/8" diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray

Factor 55 FLATLINK XXL WNCH SHKL MT GRY

• Max Rated Load: 26,000 pounds
• Designed for both steel cable and synthetic winch rope eyes
• Equipped with a shear pin load centering spool for wire rope applications
• Lightweight ? Precision CNC machined 6000 series Military Grade Aluminum
• Engineered, Tested, and Made in USA ? Patent Pending

The world?s first foldable winch shackle mount with self centering load spool. Compatible with wire rope diameters of up to 3/4" and synthetic rope tube thimbles up to 5/8" in diameter.

The Flatlink XXL, the world?s first foldable winch shackle mount with self-centering load spool. Compatible with wire rope diameters of up to 3/4" and synthetic rope tube thimbles up to 5/8" in diameter. Fits shackle pin diameters of 1 1/8". 7/8" diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs. Conventional winch hooks can cut and fray recovery straps and often allow strap ends to escape during momentary slack cycles of a typical winching recovery. Screw pin or soft shackles do not allow strap loops to escape under slack conditions. Stows neatly against either roller or Hawse type fairleads. The EPDM Rubber Guards protect alloy fairleads and are securely attached with 4 barbed tips. MADE IN THE USA, the FlatLink XXL is constructed of 6000 series billet aluminum and features a Mil-Spec Hard Anodized Gunmetal Gray finish.
